Innovation and continuous development

DINOlift manufacture and sell high-quality mobile elevated work platforms which can be used for a variety of applications allowing you to work safely at heights. Dino lift pride itself on its superior build quality and safety, and is committed to manufacturing at high standards.  Dino lift has earned its reputation as a well-known and trusted brand having been sold to over 40 countries around the world. Exports account for a very large proportion of production. With over 40 years’ experience, you can trust DINOlift to be up for the challenge.

Access Sales & Spares and DINOlift - striking up the perfect partnership

DINOLIFT Dino 160XT II - Trailer Boom Lift

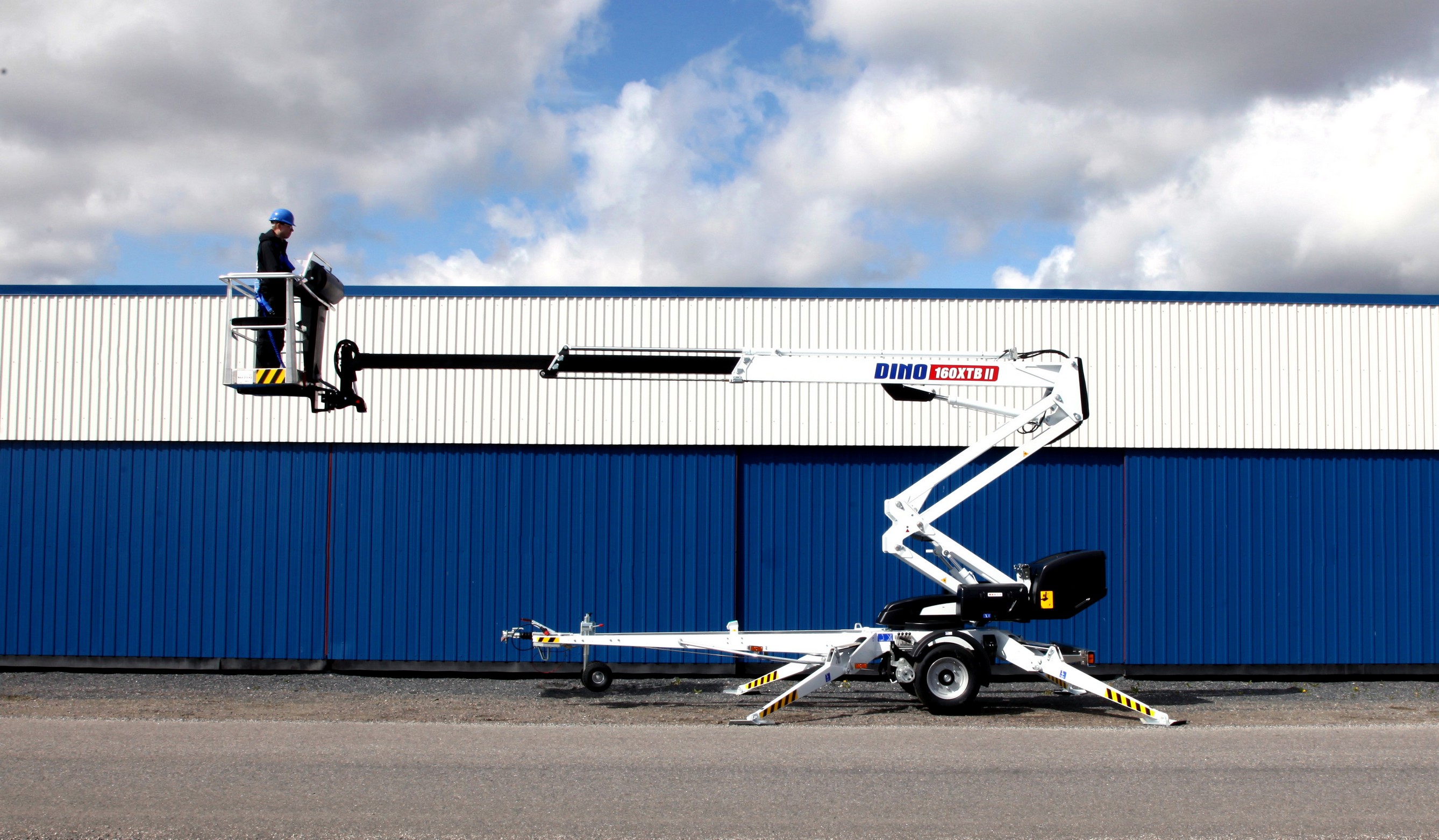

DINOlift Dino 160XT II Trailer Mounted Boom Lift

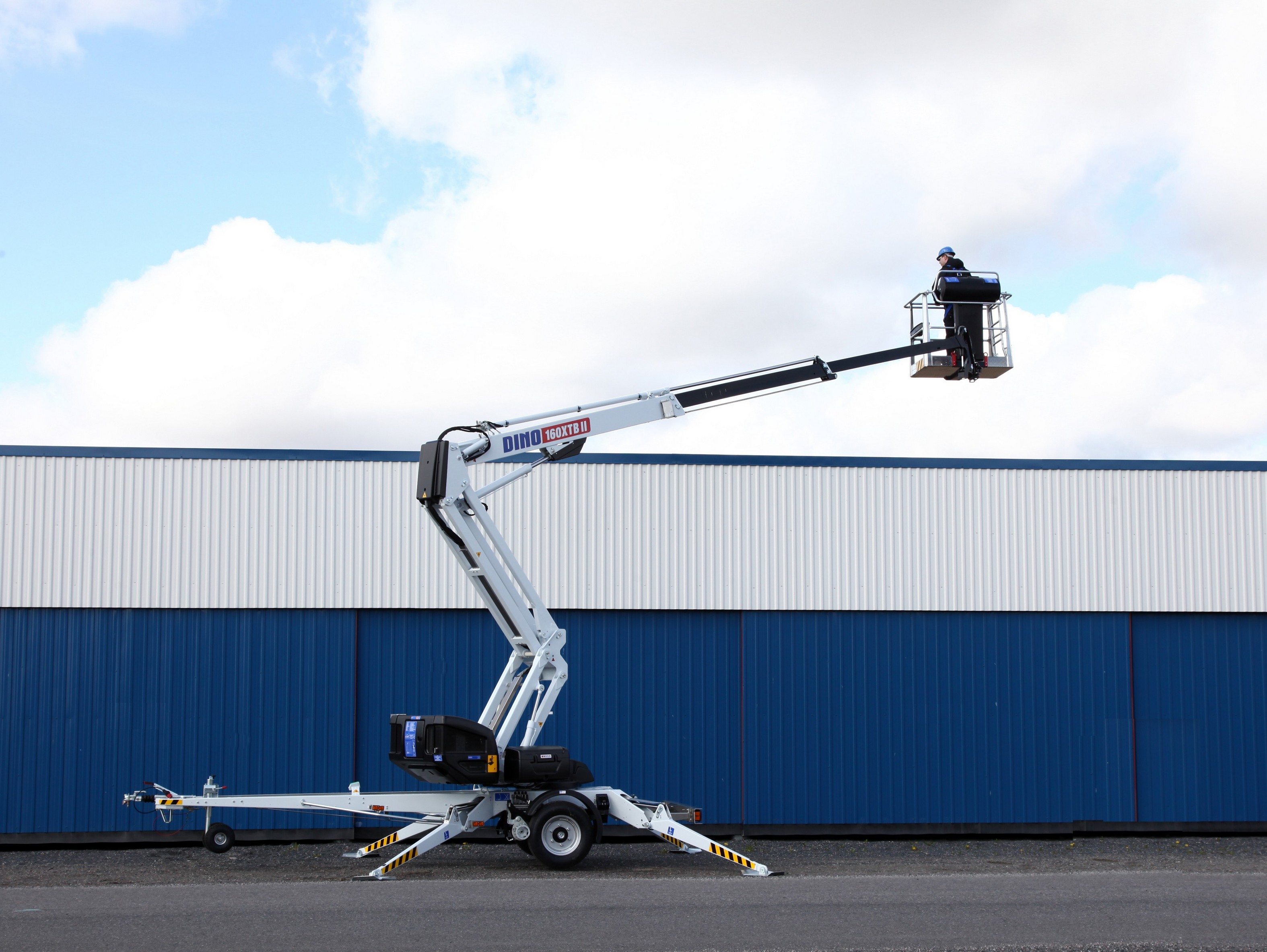

DINOlift Dino 160XT II Trailer Mounted Boom Lift

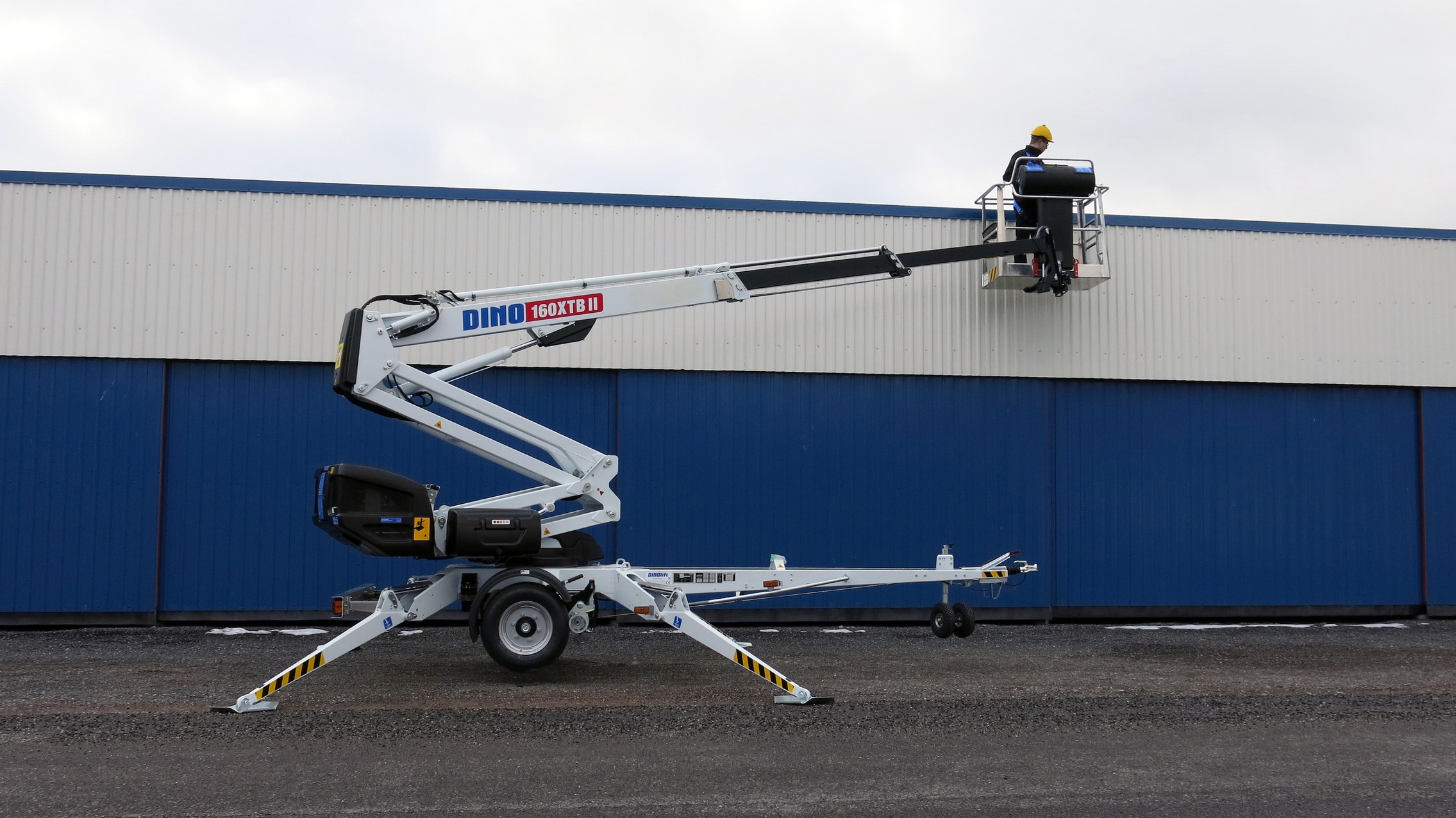

DINOlift Dino 160XT II Trailer Mounted Boom Lift

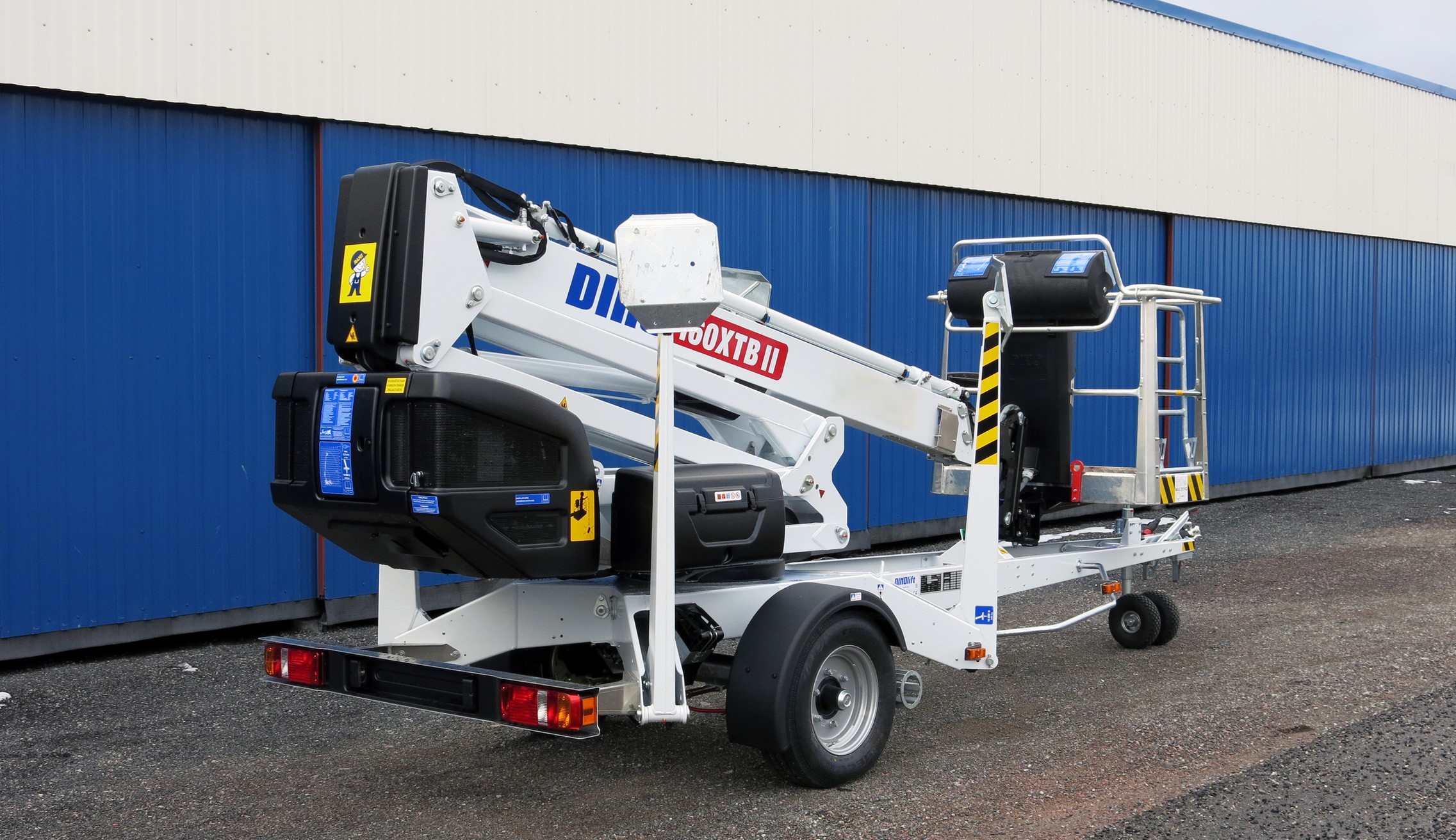

DINOlift Dino 160XT II Trailer Mounted Boom Lift
DINOlift Dino 160XT II Trailer Mounted Boom Lift
DINOlift Dino 160XT II Trailer Mounted Boom Lift
DINOlift Dino 160XT II Trailer Mounted Boom Lift
Manufacturer: DINOlift
Description

The Dino 160XT II Trailer boom lift offers a working height of 16m with a large outreach of 9.1m.  This telescopic boom lift is compact in size and has a transport length of only 6.15m making it ideal for travelling from site to site.  Continuous boom rotation makes it easy and functional to use.



Features

  • Maximum outreach with full basket load
  • Compact size, transport length of 6.15m
  • Total weight less than 2000kg including engine
  • Hydraulic basket rotation 180°
  • Large outrigger pads 280 x 360mm
  • Easy and functional
  • Spacious
  • Easy-entry basket; capacity 215kg
  • Stable to tow
  • Simple, easy to use and maintain



Options

  • Petrol or diesel power pack
  • Cable steering for driving
  • DINO SafeGuard secondary guarding
  • Two joystick controls
  • Outrigger support indicator
  • LED working lights
  • Automatic levelling
  • Extra outrigger pads 500 x 500 x 35mm + bracket
  • Lockable tool / harness box
  • Rack for tools and accessories
  • Spare wheel


Downloads



 DINOlift Dino 160XT II
 Max Working Height 16.00m
 Max Platform Height 14.00m
 Max Outreach 9.10m
Lifting Capacity 215kg
Transport Length 6.15m
 Transport Width 1.80m
 Transport Height 2.30m
 Weight 1990kg



Contact Us for further information
