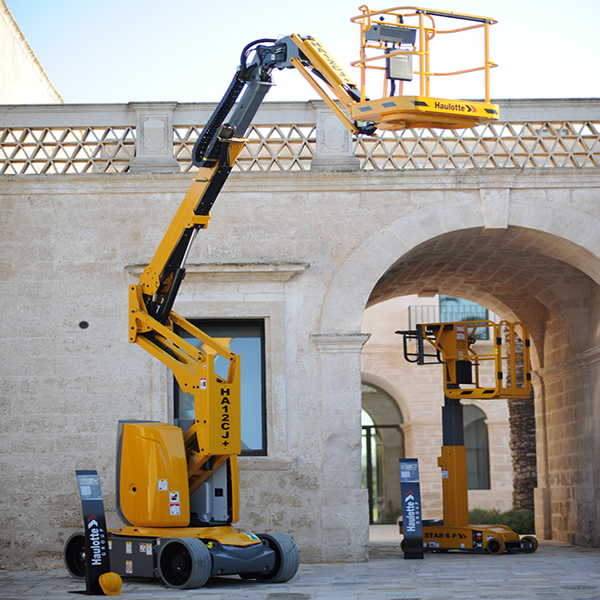

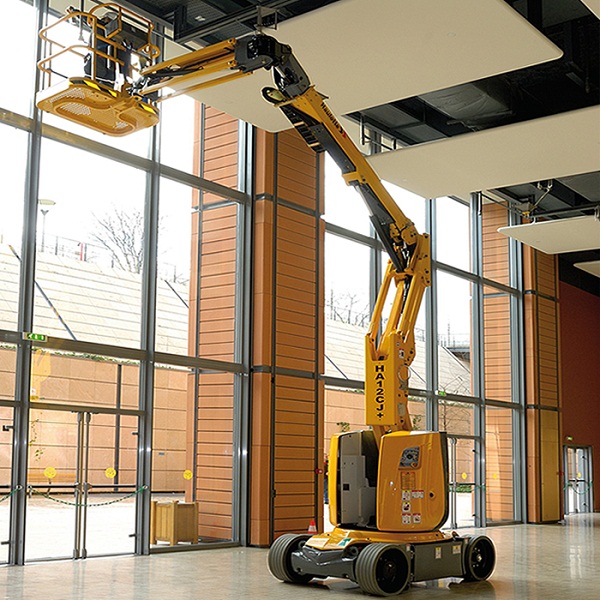

The Haulotte HA 12 CJ + Articulated Boom Lift has excellent manoeuvrability in the tightest spaces. It is able to drive and orientate the turret at the same time with its ight turning radius and zero tailswing it is compact stowed height passes through standard doorways doorways. HA 12 CJ + provides optimal productivity with its proportional and simultaneous movements it is suitable for inside and outside use.
Features
Downloads
Haulotte HA 12 CJ + Spec Sheet
| HAULOTTE HA 12 CJ + | |
| Working height | 11.7m |
| Platform height | 9.7m |
| Horizontal outreach | 7.22m |
| Up and over clearance | 4.74m |
| Maximum lift capacity | 230kg |
| Width | 1.2m |
| Height (stowed) | 1.99m |
| Gradeability | 25% |
| Power Source | 48V - 320A |
| Weight | 7040kg |
