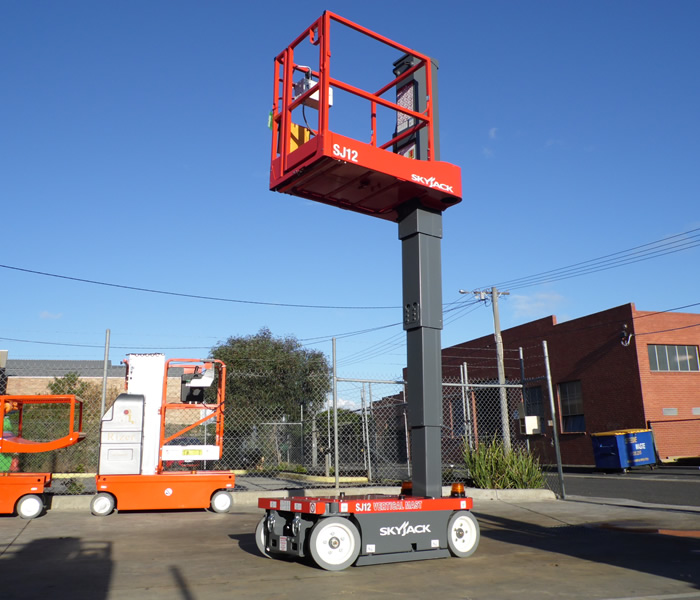

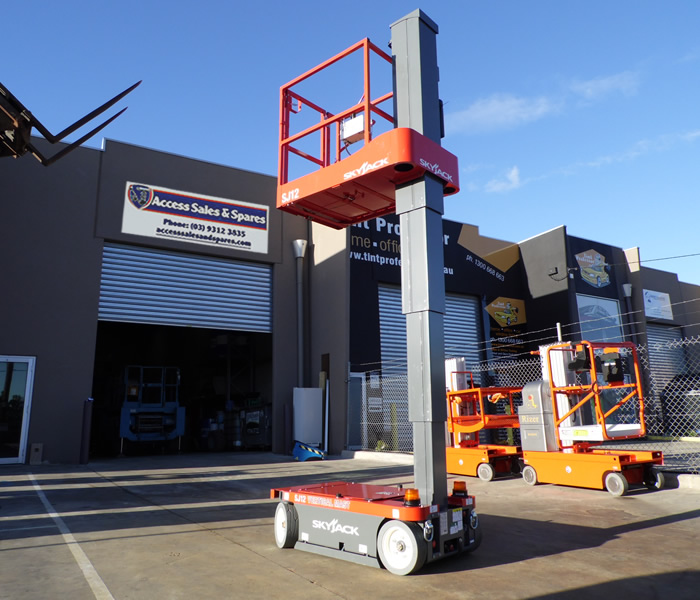

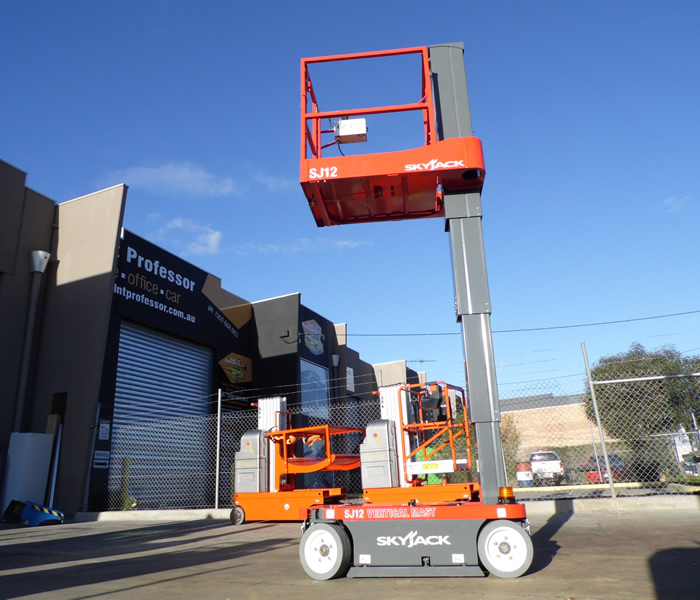

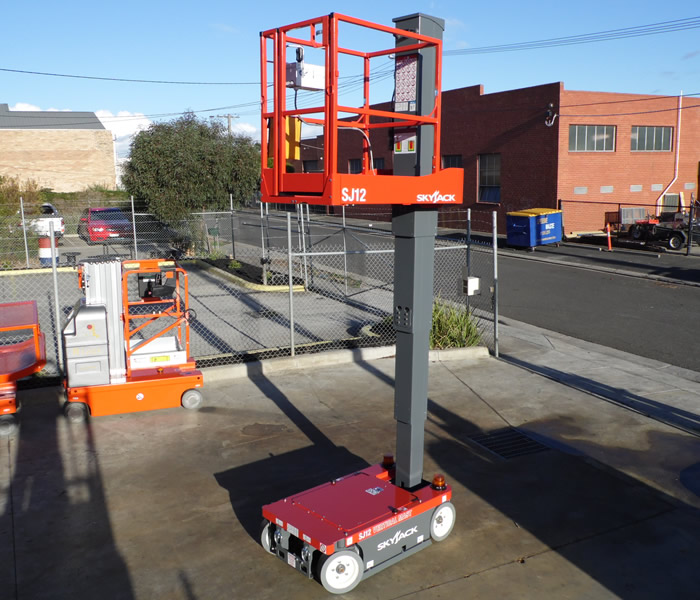

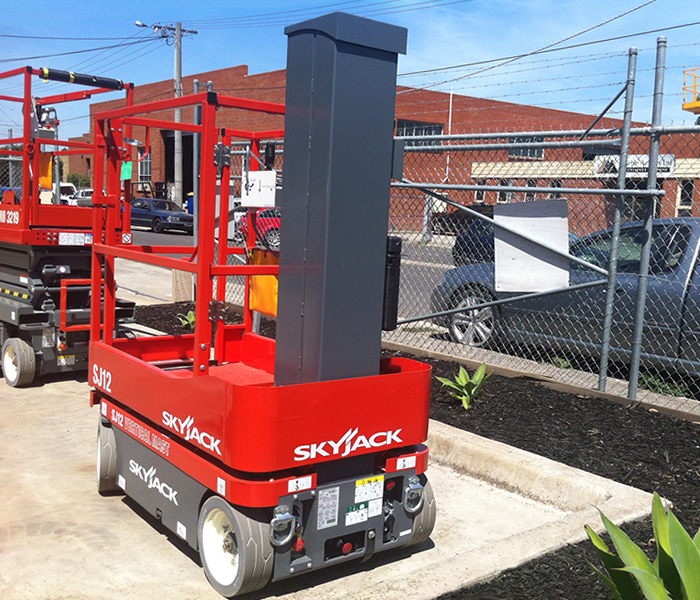

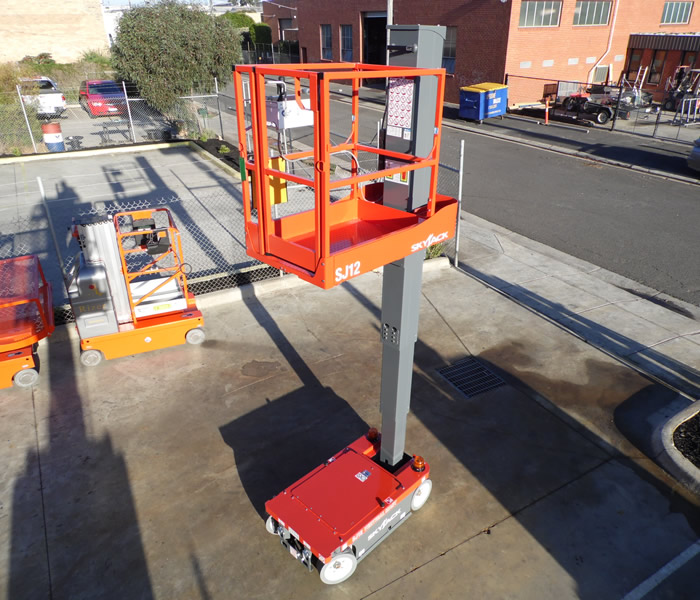

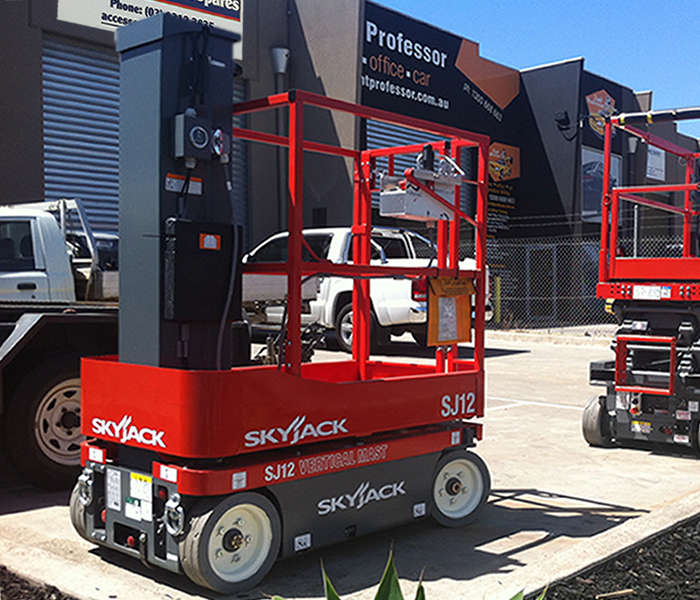

Skyjack has established itself as an industry leader providing the most robust and reliable aerial work platforms. Skyjack’s SJ 12 is no different, utilizing the same design philosophy while providing a compact footprint, superior maneuverability and a working height of 5.7m. When operating in tight workspaces, a high degree steer angle allows for superior functionality and flexibility by offering zero inside turning radius.

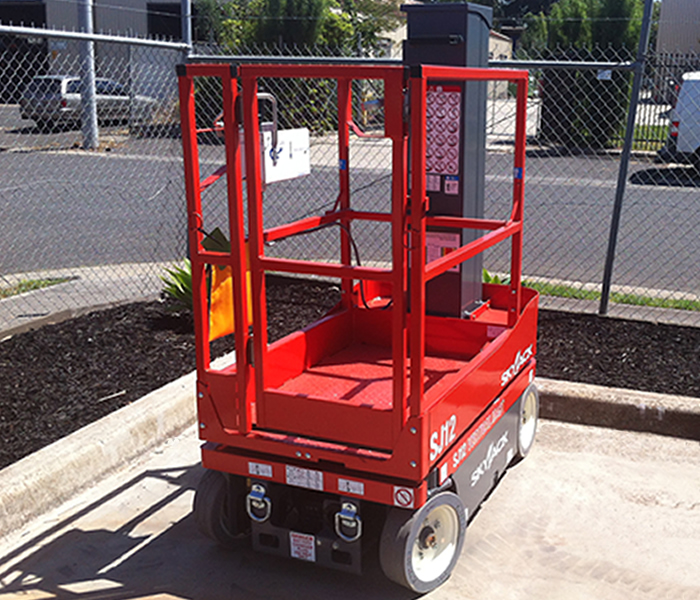

The SJ 12 features a 0.41m traversing platform, providing increased access and the ability to reach over potential obstacles. A unique slide away platform provides easy access to components, when raised or in the stowed position. Skyjack’s standard colour coded and numbered wiring system with hard-wired relay based controls help to ensure the new SJ 12 lives up to Skyjack’s leading reputation for quality and serviceability.
Features
Downloads
| SKYJACK SJ 12 | |
| Work Height | 5.7m |
| Raised Platform Height | 3.7m |
| Lowered Platform Height | 0.5m |
| Overall Width | 0.8m |
| Overall Length | 1.4m |
| Stowed Height | 1.7m |
| Platform Width (Inside Dimension) | 0.7m |
| Platform Length (Inside Dimension) | 1.0m |
| Ground Clearance (Stowed) | 6.4cm |
| Ground Clearance (Elevated) | 1.9cm |
| Weight | 780kg |
| Local Floor Load (with rated load) | 790kPa |
| Local Floor Load (no load) | 583kPa |
| Gradeability | 30% |
| Turning Radius (Inside) | 0% |
| Turning Radius (Outside) | 1.4m |
| Drive Speed (Stowed) | 4.8km/h |
| Drive Speed (Raised) | 0.8km/h |
| Maximum Drive Height | Full Height |
| Capacity (Overall) | 227kg |
Contact Us for further information.
