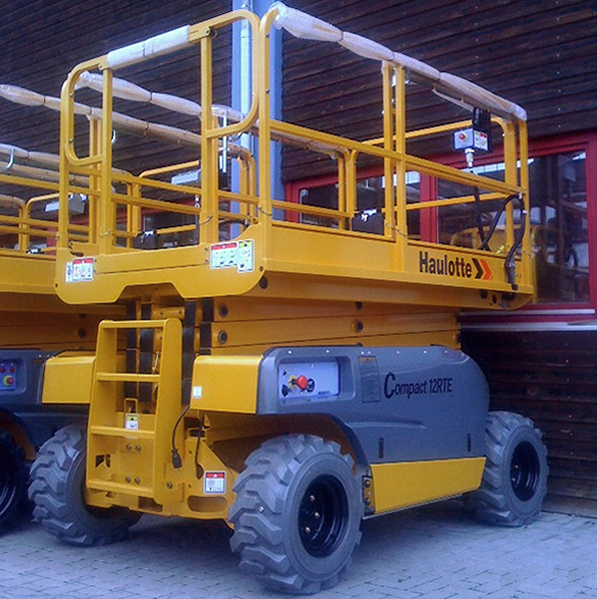

THe Haulotte Copmpact 12 RTE has fully proportional controls - electric scissor lift with a 25cm ground clearance allowing exceptional all-terrain performance. Tight turning radius provides for excellent manoeuvrability in confined spaces and increased workspace area. It is a robust, reliable and easy to maintain machine.Providing improved safety due to inclusion of load limiter at the platform
Features
Downloads
|
HAULOTTE C 12 RTE |
|
|
Working Height |
12.15m |
|
Platform Height |
10.15m |
|
Gradeability |
25% |
|
Lift Capacity |
450kg |
|
Platform Length - Outside |
2.5m |
|
Platform Length - Extended |
3.7m |
|
Length - Extension |
1.2m |
|
Platform Width - Outside |
1.54m |
|
Storage Height |
1.54m |
|
Height - Stowed |
2.54m |
|
Overall Width |
1.8m |
|
Length |
2.65m |
|
Wheelbase |
1.87m |
|
Ground Clearance |
25cm |
|
Ground Clearance - Pothole Guards Deployed |
N/A |
|
Drive Speed |
2 - 6km/h |
|
Driveable at Full Height |
10.15m |
|
Tilt |
3° |
|
Lift / Lower Speed |
43 s / 47 s |
|
Turning Radius - Outside |
3.73m |
|
Tyres - Non Marking |
26 x 12-12 |
|
Batteries |
48V - 255A |
|
Hydraulic System Capacity |
25l |
|
Weight |
3800kg |
Contact Us for further information.
